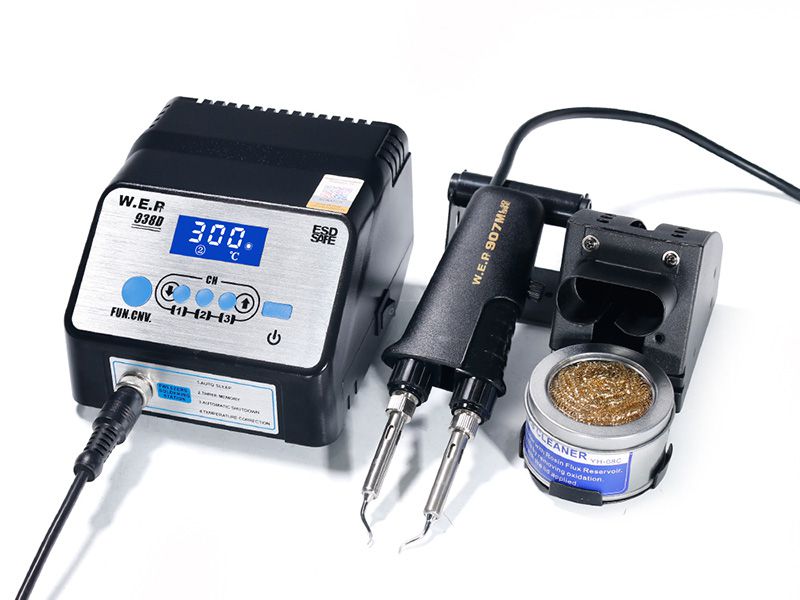

SMD Hot Tweezer Soldering Station, Item WEP-938D

The WEP-938D SMD soldering station is an intelligent design featuring soldering tweezers and a soldering iron. It is widely used for the soldering and de-soldering of electronic components, chips, SMD (surface-mount devices), etc. Other than satisfying regular welding requirements, this soldering station is widely used for soldering large terminals, welding joints and other difficult soldering situations.

Parameters

Temperature Range 100°C~480°C/212°F~896°F
Dispaly LCD
Temperature Stability ±2°C (Static)
Heating Coil Voltage AC 24V ±10% 50Hz
Tip to Ground Impedance <2Ω
Tip of Ground Voltage <2mV
Dimensions L150xW136xH93mm ±5mm
Wire Length ≥120cm
Working Temperature 0~40°C/32°F~104°F
Storage Temperature -20°C~80°C/-4°F~176°F
Storage Humidity 35%~45%
Details
Features
  • 3-segment Parameter Storage Function
    Memory functions at different parameters and quick retrieval for future uses in three different appropriate temperate settings of CH1/CH2/CH3.
  • Sleep Mode
    The soldering rework station has a status self-detection function, if the equipment is in static motion for a set time, the system will go to sleep and the temperature of soldering iron will decrease to 100℃. This function can effectively prevent the soldering iron from oxidizing, which prolongs the lifespan as well minimizes energy consumption.
  • Auto Power-off Function
    The system will count down once the machine is in sleep mode, if the rework station is not activated again in the set time, it will automatically power-off.
  • Temperature Correction Function
    The rework station can automatically correct the temperature due to environmental changes or the replacement of the heating coil, solder iron or other components with a temperature correction range of -50℃ ~+50℃.
